Triumph

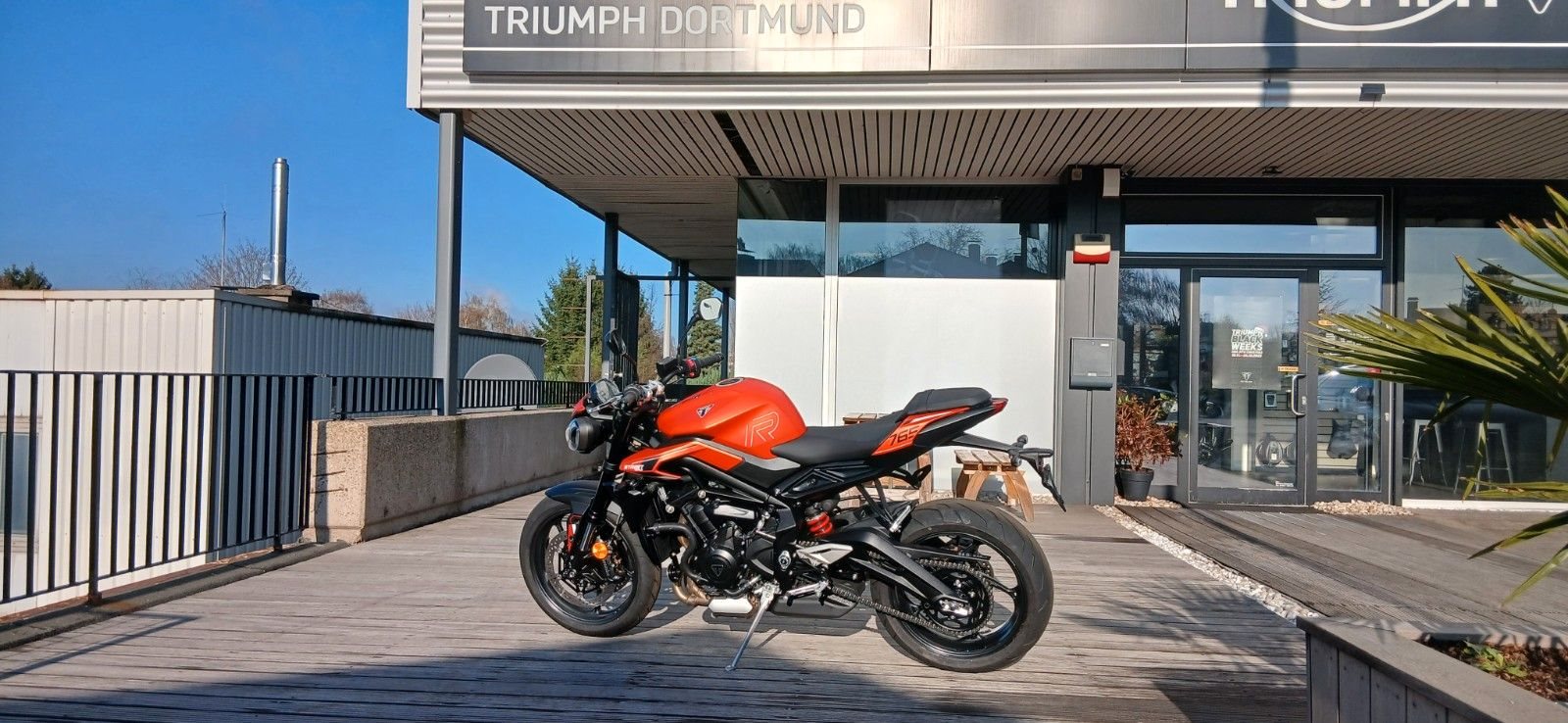

Street Triple 765 R (2025)
Prices from 11.345,- EUR
Street Triple 765 R Phantom Black: 11.345,-EUR
Street Triple 765 R Matt Baja Orange: 11.645,-EUR
Triumph
4 years
Manufacturer's warranty
Original parts
Learn moreEngine type
In line
Cylinders
3
Strokes
4-Stroke
Valves per cylinder
4
Valves
DOHC
Cooling
liquid
Displacement
765 ccm
Bore
78 mm
Stroke
53,4 mm
Max. Power Output
120 HP
Rpm at Max. Power Output
11500 rpm
Max. Torque
80 Nm
Rpm at Max. Torque
9500 rpm
Compression Ratio
13,25
Fuel system
Injection
Starter
Electric
Clutch Type
Multiplate in oil-bath, Antihopping
Final Drive
Chain
Transmission Type
Gearshift
Number of gears
6
Frame
Aluminium
Frame type
Twin Tube
Steering axis angle
23,7 degree
Trail
97,8 mm
Front suspension
Upside-Down telescopic fork
Technology
Big Piston
Brand
Showa
Diameter
41 mm
Travel
115 mm
Adjustment
Compression, Preload, Rebound
Rear suspension
Swing arm
Material
Aluminium
Shock absorber
Monoshock
Strut
Deflection
Brand
Showa
Travel
134 mm
Adjustment
Compression, Preload, Rebound
Front brake
Double disk
Diameter
310 mm
Piston
Four pistons
Strut
Floating caliper
Actuation
Hydraulic
Technology
radial, Monoblock
Brand
Brembo
Rear brake
Disc
Diameter
220 mm
Piston
Single piston
Brand
Brembo
Assistance systems
ABS, Riding modes, Cornering ABS, Ride by Wire, Quickshifter, Shift assistant with blipper, Traction control
Front tyre width
120 mm
Front tyre height
70 %
Front tyre diameter
17 inch
Rear tyre width
180 mm
Rear tyre height
55 %
Rear tyre diameter
17 inch
Length
2055 mm
Width
792 mm
Height
1047 mm
Wheelbase
1402 mm
Seat Height from
826 mm
Dry Weight (with ABS)
168 kg
Kerb Weight (with ABS)
189 kg
Fuel Tank Capacity
15 l
Top Speed
235 km/h
License
A
Range
277 km
Euro Norm
Euro 5+
combined CO2 emissions
120 g/km
Combined fuel consumption
5,4 l/100km
Maintenance interval
10000 km
Stationary noise
95 dB
Equipment
LED daytime running lights, LED-Headlights, TFT display
All information without guarantee. Typing errors and mistakes excepted.
